Automatic Digital Bitumen Penetrometer
Used to determine the consistency of a bituminous sample under fixed conditions of load, time and temperature.
Base Table, light alloy leveling screws, plated vertical rod are adjustable as micrometric.
The Slide is manufactured from brass. Free fall timer can chosen 0 – 999 second. Measurement Resolution of Optic sensor is 0,01 mm.
Automatic Bitumen Penetrometer has stop - release button.
3 tests are made and the average is taken automatically.

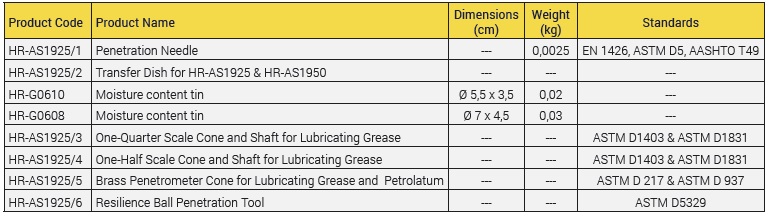

The penetrometer is supplied with penetration needle, transfer dish and 6 penetration tins 55x35 mm dia.
The other accessories should be ordered separately.
Base Table, light alloy leveling screws, plated vertical rod are adjustable as micrometric.
The Slide is manufactured from brass. Free fall timer can chosen 0 – 999 second. Measurement Resolution of Optic sensor is 0,01 mm.
Automatic Bitumen Penetrometer has stop - release button.
3 tests are made and the average is taken automatically.
The penetrometer is supplied with penetration needle, transfer dish and 6 penetration tins 55x35 mm dia.
The other accessories should be ordered separately.
EN 1426, ASTM D5, AASHTO T49, ISO 3997, IP 49
