Automatic Ring And Ball Softening Point Apparatus
Used for determining softening point of bituminous materials by ring and ball method.

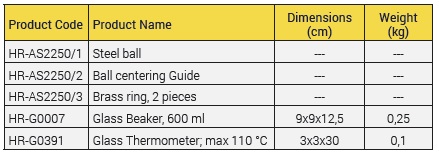

Automatic Ring and Ball Apparatus consist of a heater, electric lifting system and magnetic stirrer with speed control, barrier system with optic sensor, microprocessor controlled and large display with touch panel, 2 steel balls, ball centering guide, 2 brass rings, 600 ml glass beaker and max. 110°C thermometer.
The ring and ball values are automatically registered by two photoelectric cells.
Two test options are available;
1.30 to 80° C for water
2.80 to 150° C for glycerole
Automatic Ring and Ball Apparatus consist of a heater, electric lifting system and magnetic stirrer with speed control, barrier system with optic sensor, microprocessor controlled and large display with touch panel, 2 steel balls, ball centering guide, 2 brass rings, 600 ml glass beaker and max. 110°C thermometer.
The ring and ball values are automatically registered by two photoelectric cells.
Two test options are available;
1.30 to 80° C for water
2.80 to 150° C for glycerole
EN 1427, ASTM D36, AASHTO T 53
