Dropping Ball Apparatus
Used to measure the consistency of cement mortars, Dropping Ball Apparatus allows 25 mm diameter acrylic ball to fall freely from a standard height of 250 mm into a specimen of mortar contained into a brass ring mould, and the surface of which has been carefully prepared.
The depth of the ball penetration into the mortar gives the specimen consistency.

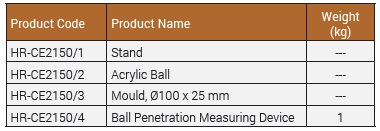

The instrument comprises a Dropping Device mounted on a Stand, Acrylic Ball, Ø100 x 25mm Mould.
The base of the stand is machined.Chromed finishing.
Ball Penetration Measuring Device should be ordered separately. It formed by a tripod on which a dial gauge 25x0,01 mm is mounted. A device to adjust the height of the dial in relation to the tripod is also included.Chromed finishing.
The depth of the ball penetration into the mortar gives the specimen consistency.
The instrument comprises a Dropping Device mounted on a Stand, Acrylic Ball, Ø100 x 25mm Mould.
The base of the stand is machined.Chromed finishing.
Ball Penetration Measuring Device should be ordered separately. It formed by a tripod on which a dial gauge 25x0,01 mm is mounted. A device to adjust the height of the dial in relation to the tripod is also included.Chromed finishing.
BS 4551-1, 6463-4
